Long range Low power Strong anti-interference ability AN1310UA-E Sub G module transceiver module support customization

Name: Long range Low power Strong antiinterference ability AN1310UAE Sub G module transceiver module support customization
Brand: Cansec Wireless
Price: 5.46 USD

Long range Low power Strong anti-interference ability AN1310UA-E Sub G module transceiver module support customization Manufactures

Brand Name : Cansec Wireless

Model Number : AN1312HA-E

Place of Origin : Beijing

MOQ : 100

Payment Terms : T/T

Supply Ability : 2000000 pieces per year

Price : USD 5.46$ per piece

Delivery Time : 5~8 weeks

Packaging Details : Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg

Standby Current : 1uA

Tx Power : 3dBm

Rx Current : 5.5mA

Interface : SPI, UART, I2C

Overall Size : 15mm*22mm (+25mm antenna)*3.2mm

Frequency Range : 433Mhz, 868Mhz, 915Mhz or customization

Application : Wireless Sensor Networks, IoT Devices

Working Tempurature : -20~+70℃

Certifications : FCC, CE, TELEC

Contact Now

IoT Wireless Sub G module- -AN1310 module

AN1310 Module is a low-power RF module. It has been certified by CE FCC and TELEC.
We can customize it according to the request, including the logo, the frequency, and even the hardware.

Specifications

Vbat=3.3V Fquency=868 / 915mhz

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.8	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	-	1	μA
	Receive Mode	-	5.5	-	mA
	Transmit Mode	-	34	36	mA
TX Power		-	13	14	dBM
RX Sensitivity		-	-	-115	dBM
Distance(868Mhz)		700			m

Vbat=3.3V Fquency=433 / 470mhz

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.8	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	-	1	μA
	Receive Mode	-	5.5	-	mA
	Transmit Mode	-	345	368	mA
TX Power		-	13	14	dBM
RX Sensitivity		-	-	-114	dBM
Distance(433Mhz)		400			m

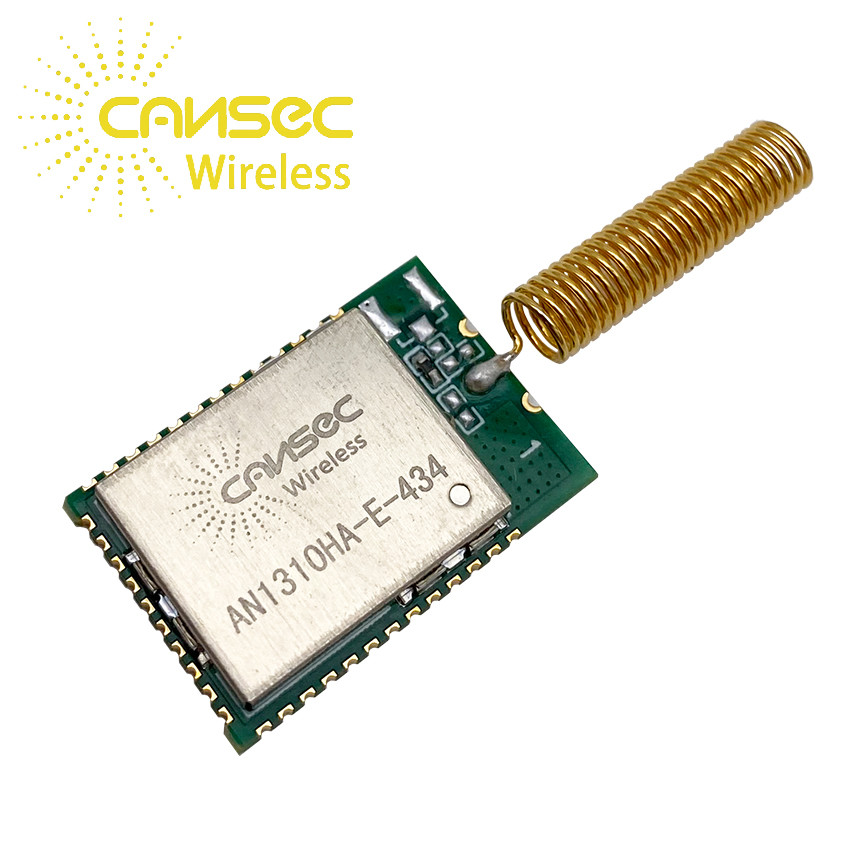

Long range Low power Strong anti-interference ability AN1310UA-E Sub G module transceiver module support customization Images
